Blade Ø 275 mm
| Article | Code | Description | Download | |||||
|---|---|---|---|---|---|---|---|---|

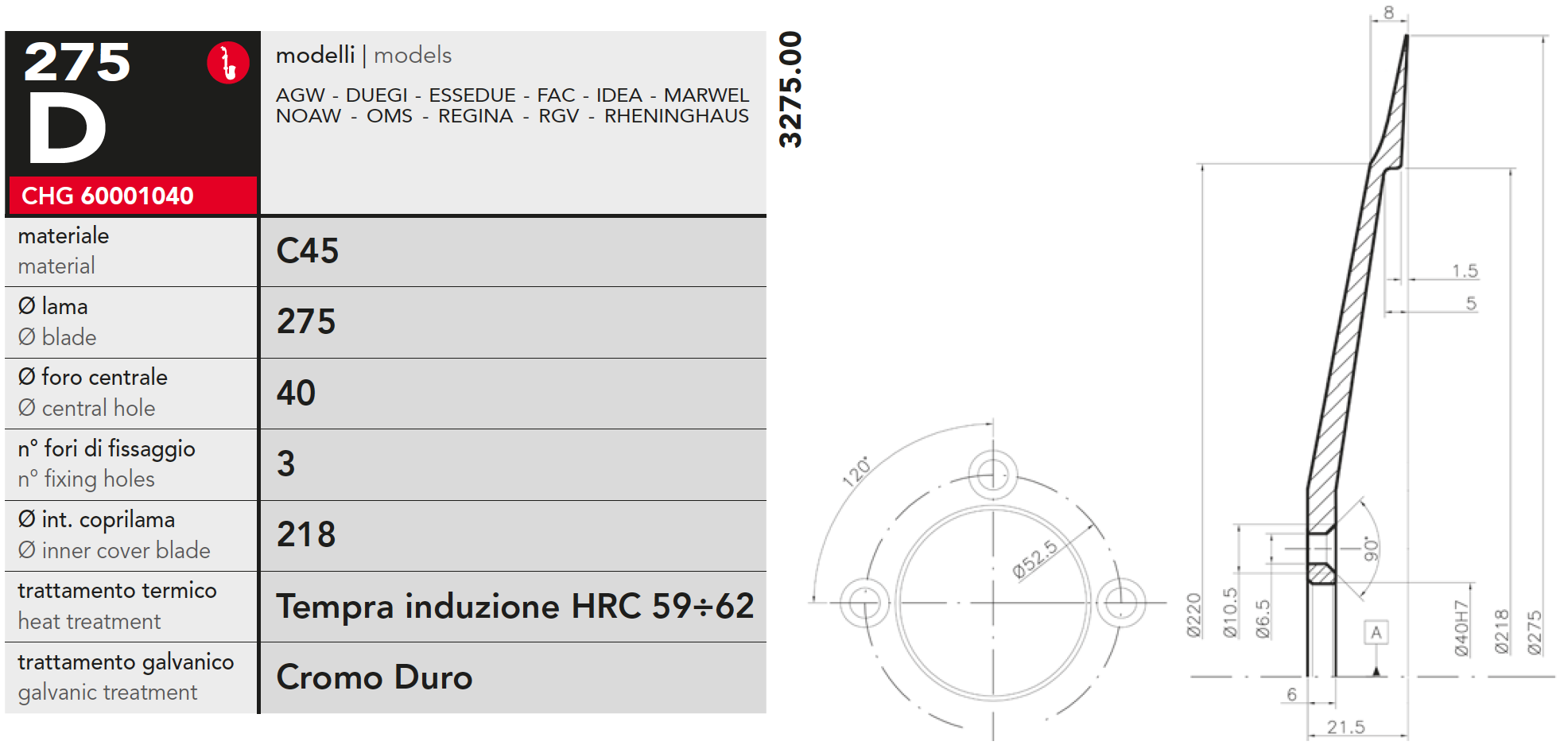

| D | 3275.00 |
Ø Blade mm 275
|
CAD | 3D | Video | Specifications | Catalogue | |

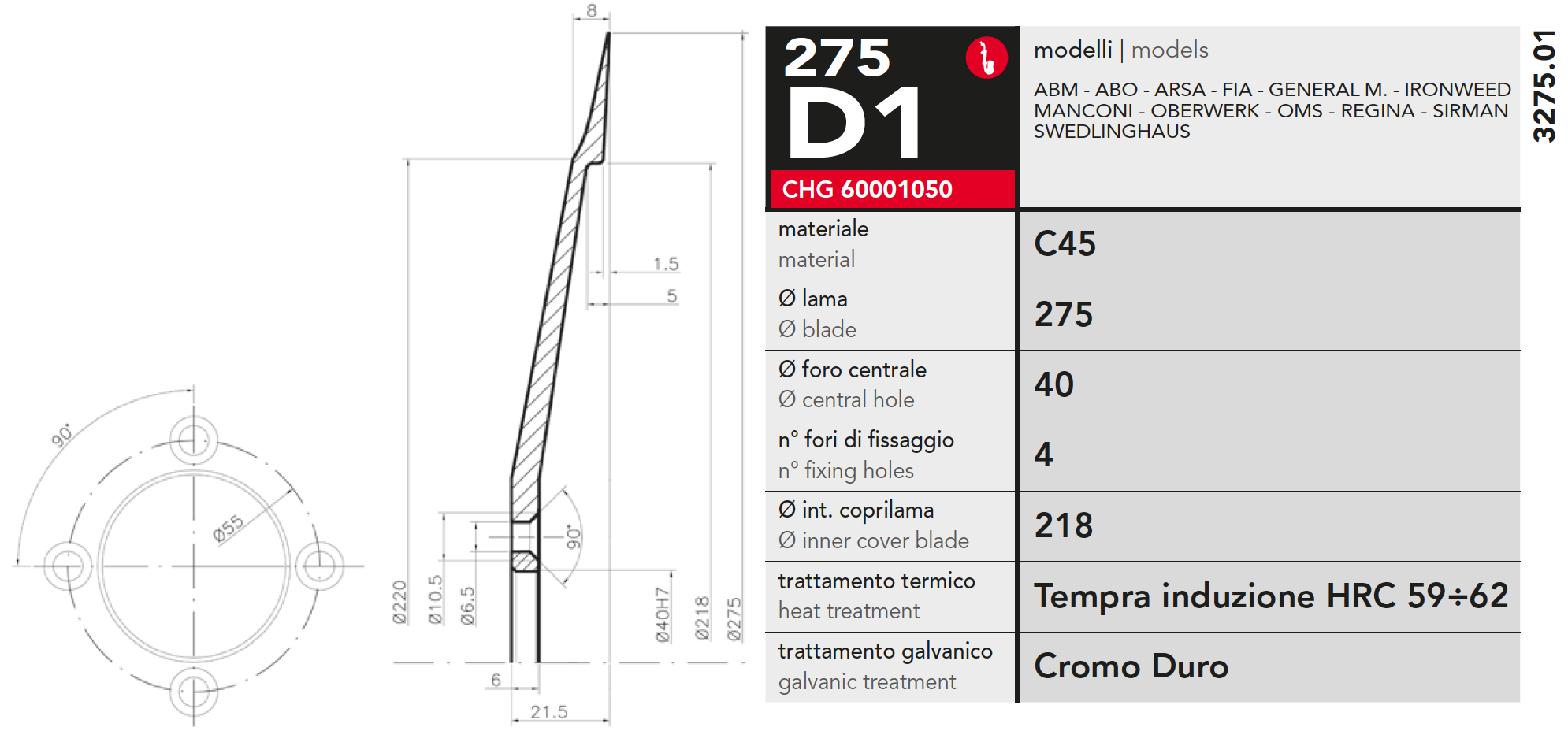

| D1 | 3275.01 |
Ø Blade mm 275
|
CAD | 3D | Video | Specifications | Catalogue | |

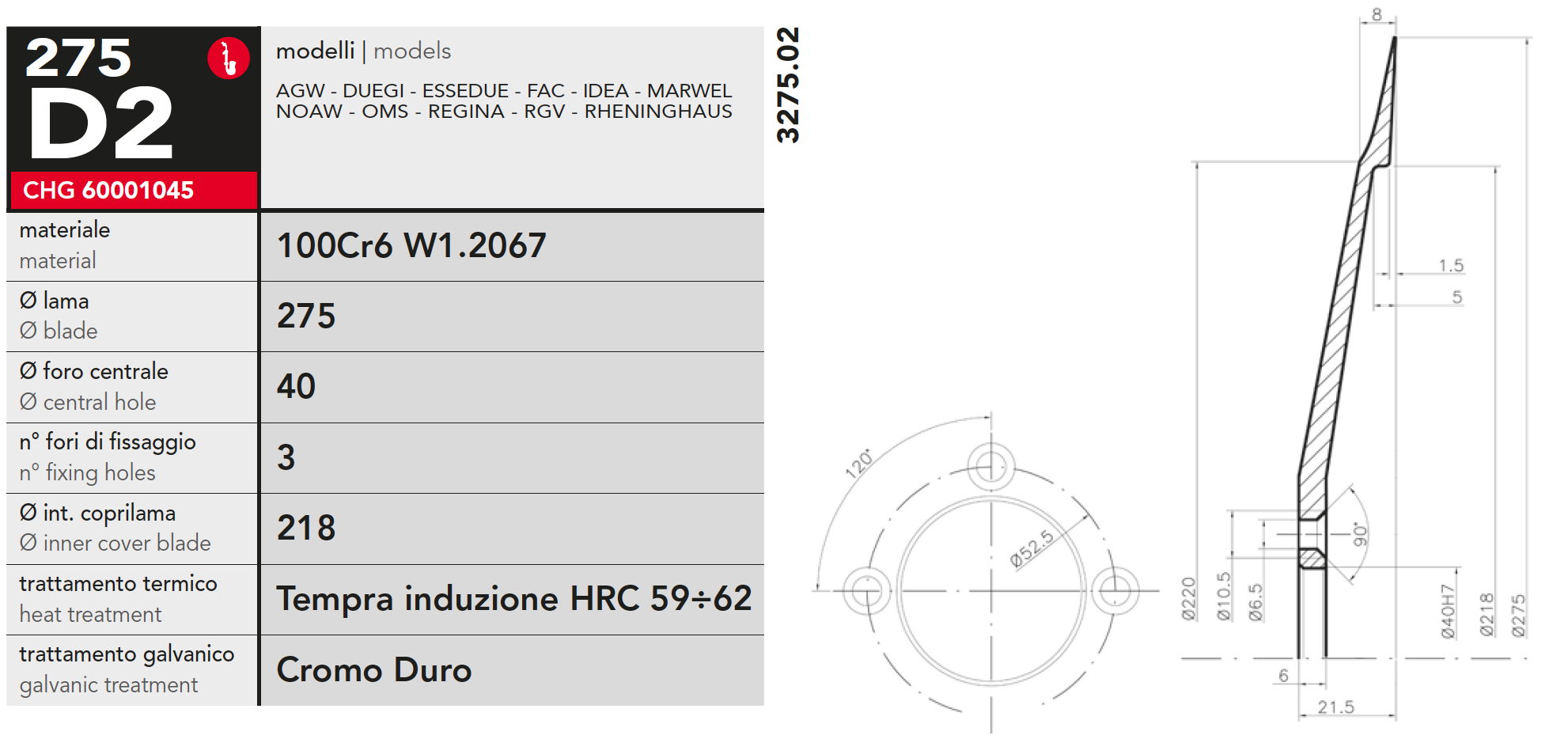

| D2 | 3275.02 |
Ø Blade mm 275
|
CAD | 3D | Video | Specifications | Catalogue | |
| D3 | 3275.03 |
Ø Blade mm 275
|
CAD | 3D | Video | Specifications | Catalogue | |

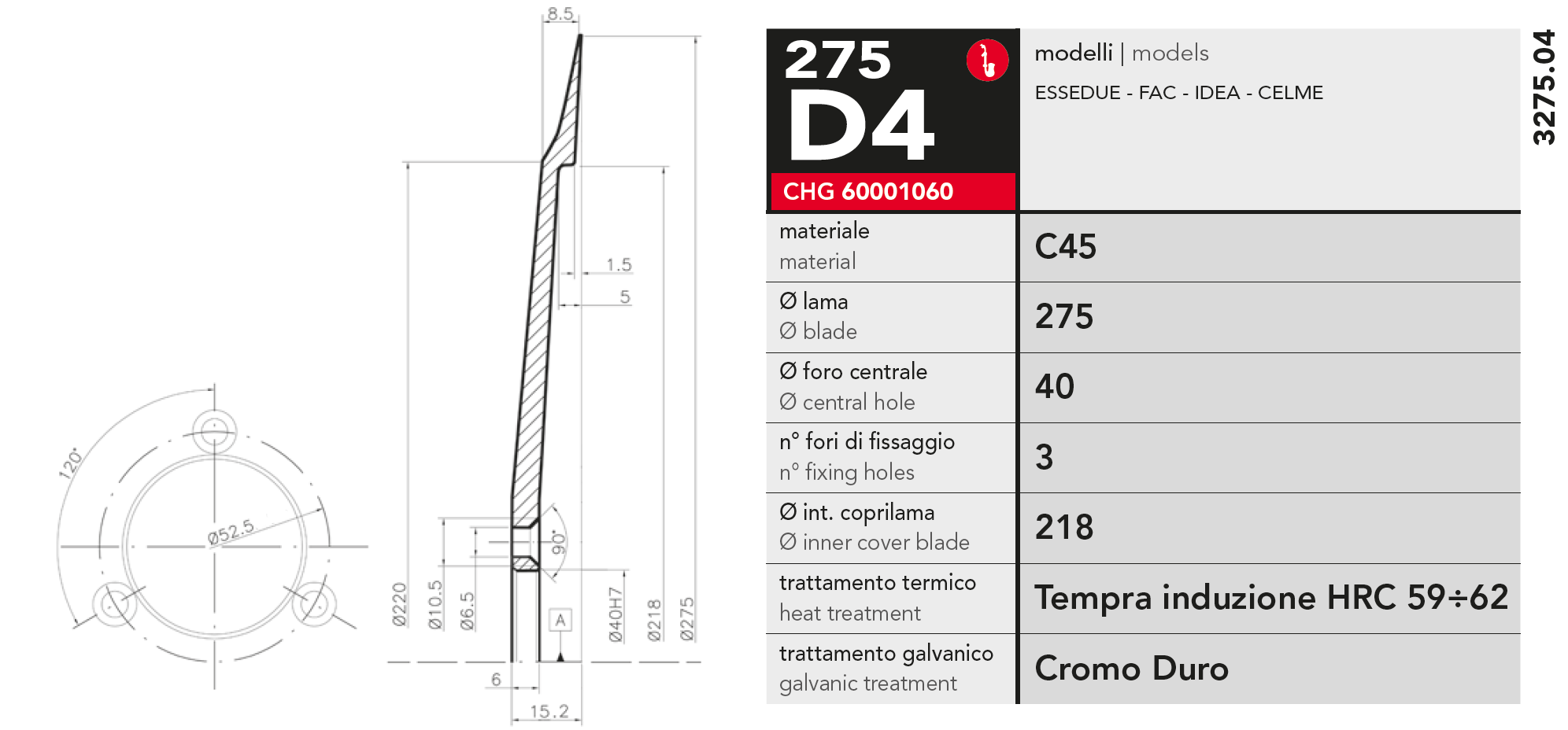

| D4 | 3275.04 |
Ø Blade mm 275
|
CAD | 3D | Video | Specifications | Catalogue | |
| D5 | 3275.05 |
Ø Blade mm 275
|
CAD | 3D | Video | Specifications | Catalogue | |

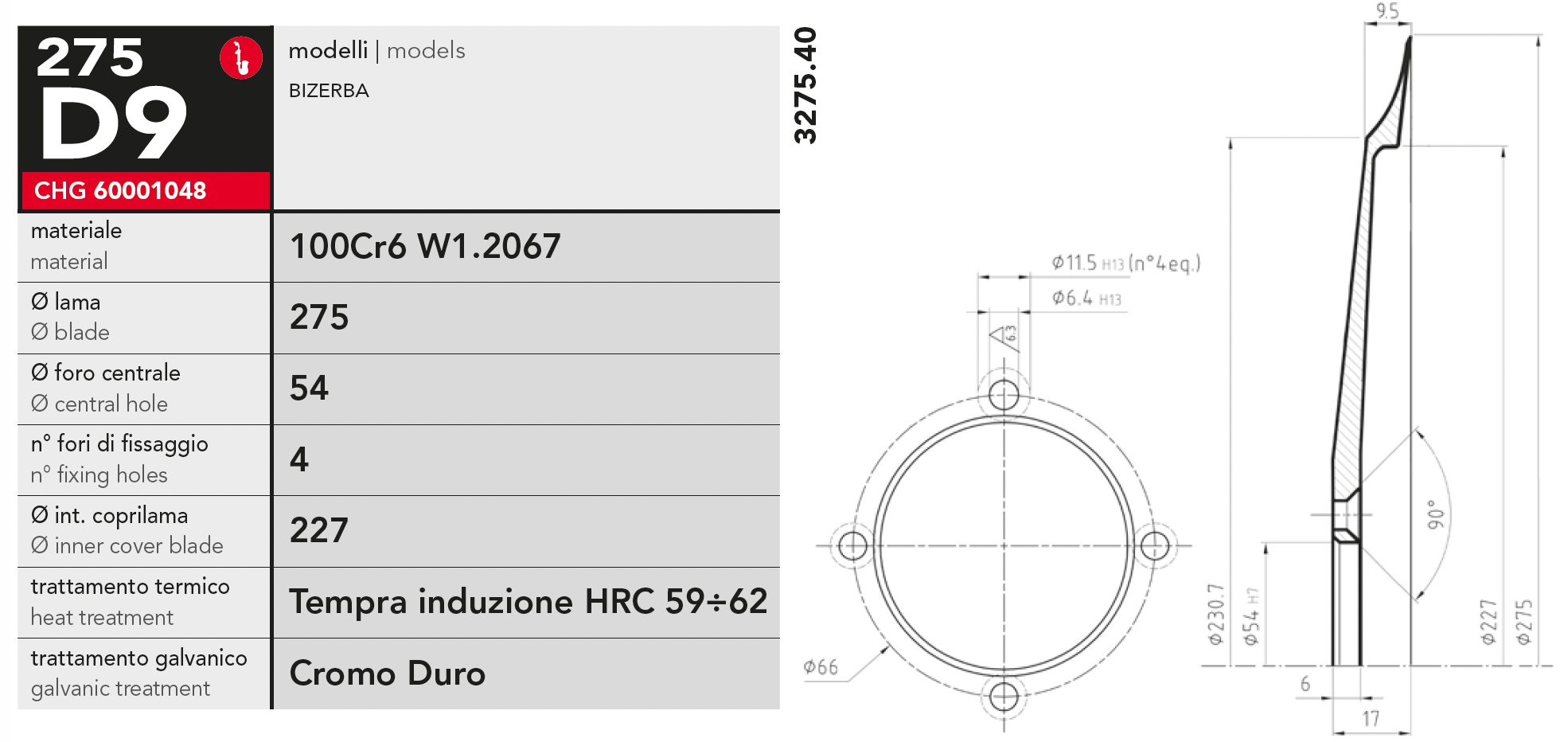

| D9 | 3275.40 |
Ø Blade mm 275
|
CAD | 3D | Video | Specifications | Catalogue | |

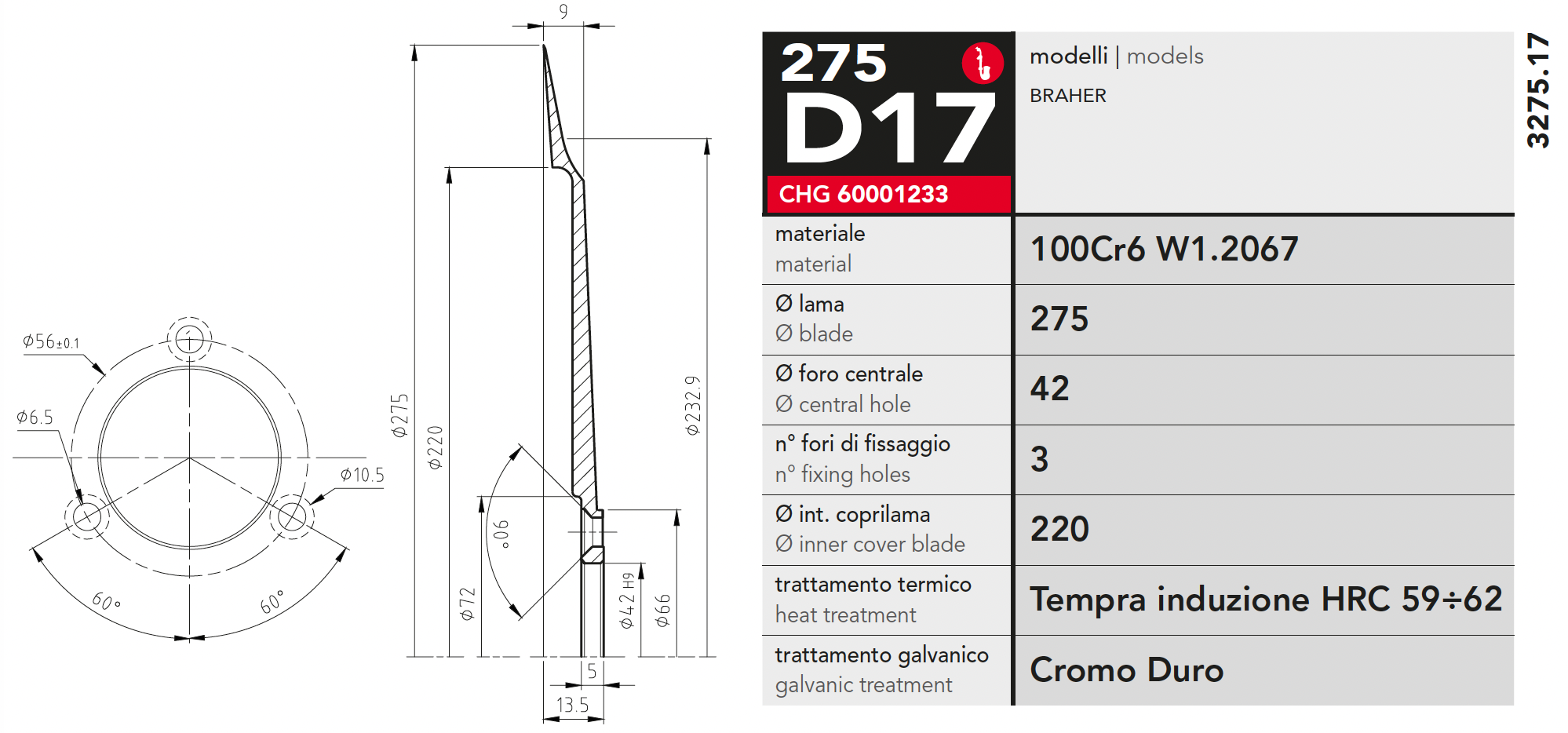

| D17 | 3275.17 |
Ø Blade mm 275
|
CAD | 3D | Video | Specifications | Catalogue | |
